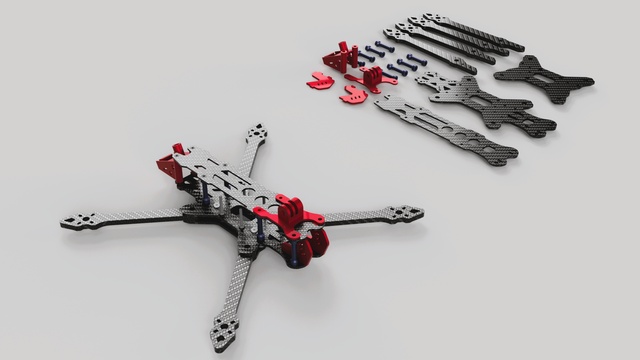

FPV Drone Frame Kit – 7-Inch / 317mm | Tactical X-Type | 3D Printable + Carbon Fiber Option

Description:This FPV Drone Frame Kit is a rugged, adaptable 7-inch (317mm wheelbase) frame designed for FPV pilots, tactical engineers, and experimental UAV developers. Built with a strong X-Type structure, this frame is optimized for both carbon fiber construction and 3D printing using PLA+, PETG, or ABS filaments.

Whether you're flying freestyle, performing long-range reconnaissance, or building a kamikaze drone, this design supports multiple payloads and includes a dedicated antenna/GPRS module mount for telemetry or tracking hardware.

3D Print-Ready Details:

File Formats: STL & OBJ included

Infill Recommendation: 10% for weight savings

Filament Options: PLA+, PETG, ABS

Layer Height: 0.2mm

Supports Needed: No (print-friendly geometry)

Hardware Required: M3x25mm Cap Screws/Nuts x4

Key Features:

7-Inch propeller support (317mm wheelbase)

X-Type configuration for flight stability and maneuverability

Payload-Ready: Supports tactical/delivery add-ons

Built-in antenna/GPRS module mount

Inner bay height: 35mm (for stack and wiring)

FC/VTX Mounting: 20x20mm & 30.5x30.5mm

Motor mounts: 16x16mm & 19x19mm

Camera mount: 19mm width

Optimized for both printed and traditional frame builds

Included in Download:

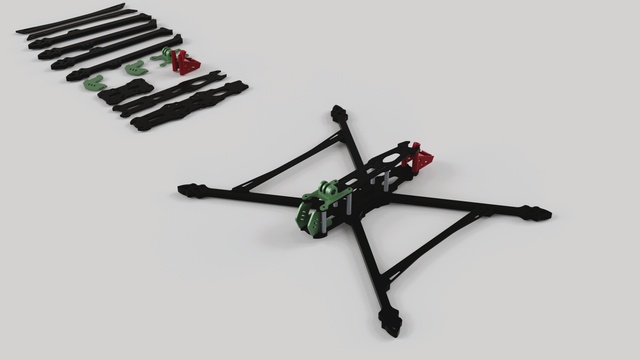

STL + OBJ files (arms, base/mid/top plates, camera side walls, antenna/GPRS mount)
