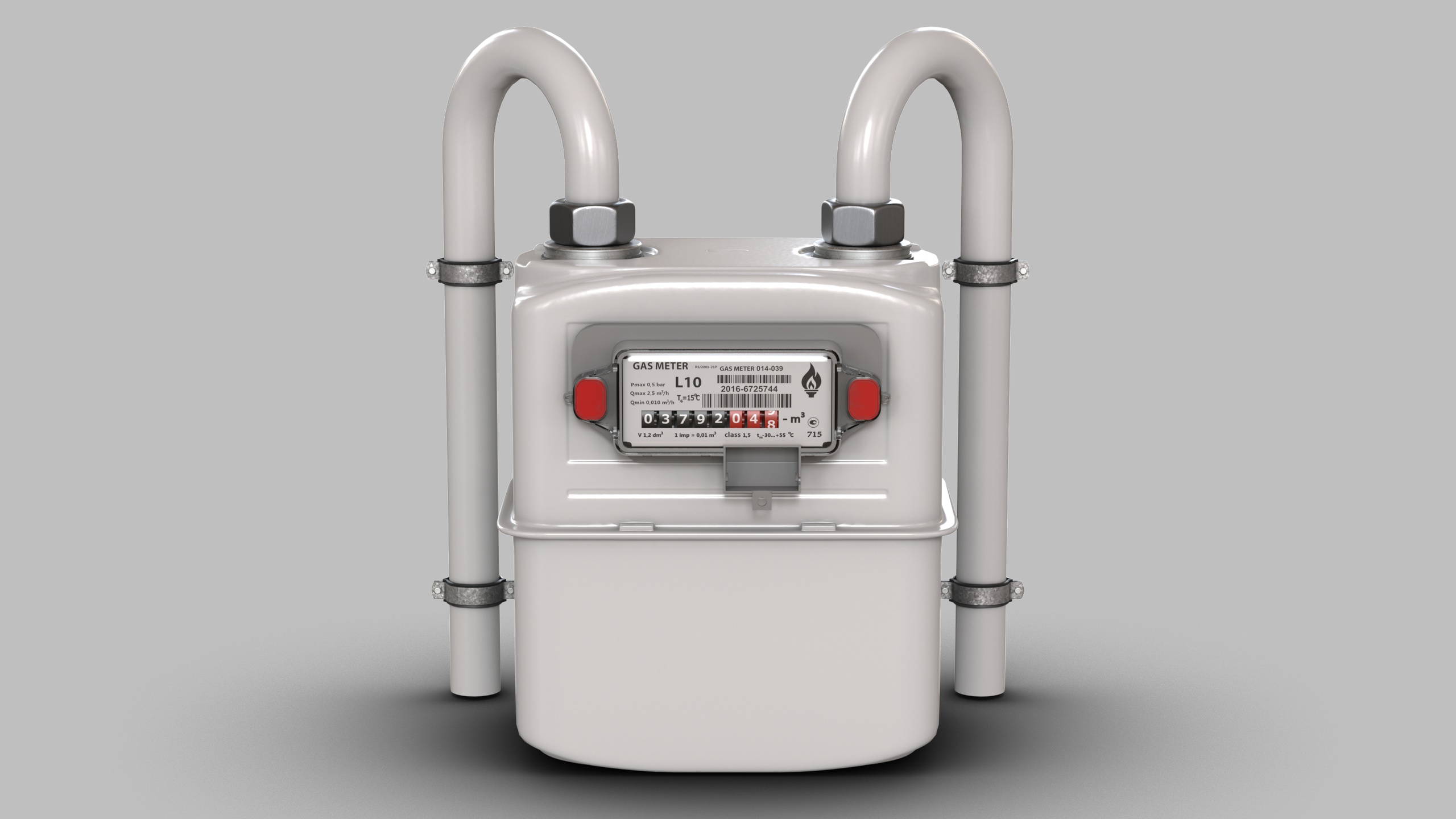

Gas Meter

High-quality 3d model optimized for product visualization, simulations, and real-time rendering.

1. Technical Specifications

- The provided textures are created in full compliance with the PBR Metallic workflow.

- Texture Maps: BaseColor, Roughness, Metallic, Normal, AO

- Texture Resolutions: 4096x4096px, 8-bit PNG

- Normal Map Format: OpenGL (+X, +Y, +Z). Note: Invert the Green channel (Y) if your engine requires DirectX.

- UV: Overlapping (Symmetrical or duplicated elements share UV space to maximize texture resolution and efficiency).

- Texel Density: 80 px/cm

- Mesh Structure: 2 mesh object(s)

- Geometry:

- Faces: 44555

- Vertices: 43043

- Triangles: 84681

- Dimensions: x:25.5cm y:16.6cm z:29cm

- Scene Setup: The model pivot is set to world origin (0, 0, 0) for immediate, hassle-free placement in any scene. All transforms (location, rotation, and scale) are fully applied. Every mesh object, material, and texture is clearly named following a logical, descriptive convention for easy navigation and re-use.

2. Formats and Engine Support

Blender 5.1.0

- Materials are fully configured for PBR Metallic workflow and Cycles.

- Textures packed into the .blend scene file.

Unreal Engine 5.7.4

- Built natively with the Substrate shading system. For correct rendering and optimal visuals, enable Substrate and Adaptive GBuffer in Project Settings.

- Fully compatible with Lumen and Ray Tracing (ensure these features are enabled in Project Settings).

- Included as a grouped Blueprint actor for easy scene placement.

- The scene is lit with a high-quality HDRI from Poly Haven (CC0 License). The "HDRI Backdrop" plugin must be enabled in project settings.

Universal Formats (FBX / OBJ)

- Universal FBX and OBJ formats include geometry data but do not have pre-configured materials. Using the provided textures, you can recreate the 3D object in any modern 3D software following the PBR Metallic workflow.
